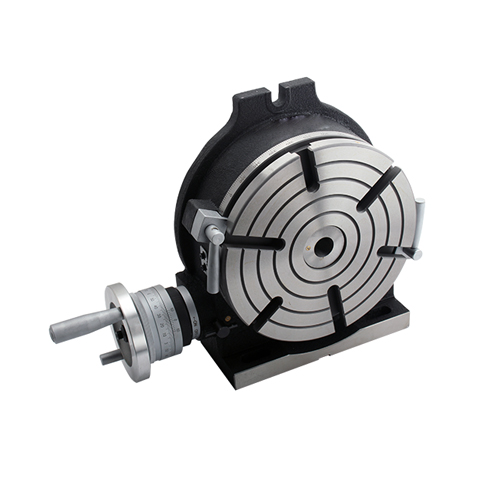

ROTARY TABLE

Hor.&Vert.Rotary Table

ROTARY TABLE
0086-18615009310
felixtools@fmore-ma.com
Feature:Diameter 3~16 in;Horizontal and vertical installations; Worm and worm gear as dividing system; 3-jaw scroll chuck hole plates and adjustable tailstock is optional.
FEEDBACK

Horizontal and vertical rotary tables are main accessory of milling and drilling machine for home-made processing ,DIY and other machining applications.

Items	HV-3	HV-4	HV-5	HV-6	HV-8	HV-10	HV-12	HV-14	HV-16
Diameter of table mm	76	110	127	150	200	250	300	350	400
Morse taper of center hole	MT2	MT2	MT2	MT3	MT3	MT3	MT4	MT4	MT4
Center height for Vert. Mounting mm	59	81.5	90	100	135	165	195	230	250
Width of T-slot mm	8	12	12	12	12	12	14	14	14
Adjacent angle of T-slot	90°	120°	120°	90°	90°	60°	60°	60°	60°
Width of locating key mm	12	12	12	16	16	16	16	16	18
Transmission radio of worm gear	1:36	1:72	1:72	1:90	1:90	1:90	1:90	1:90	1:90
Min.value of vernier	/	/	/	10”	10”	10”	10”	10”	10”
Max.workload (Hor.) kg	20	20	50	100	150	200	250	300	350
Max.workload (Vert.) kg	10	10	25	50	75	100	125	150	150
N.W. kg	8	11	13.5	14	28	43	71	83	93
G.W. kg	9	11.5	14	15	30	45	73	85	95
Case dimensions cm	19x10x11	30x24x13	30x24x13	27x24x13	38x30x16	43x35x18	55x45x19	55x48x19	55x50x20
