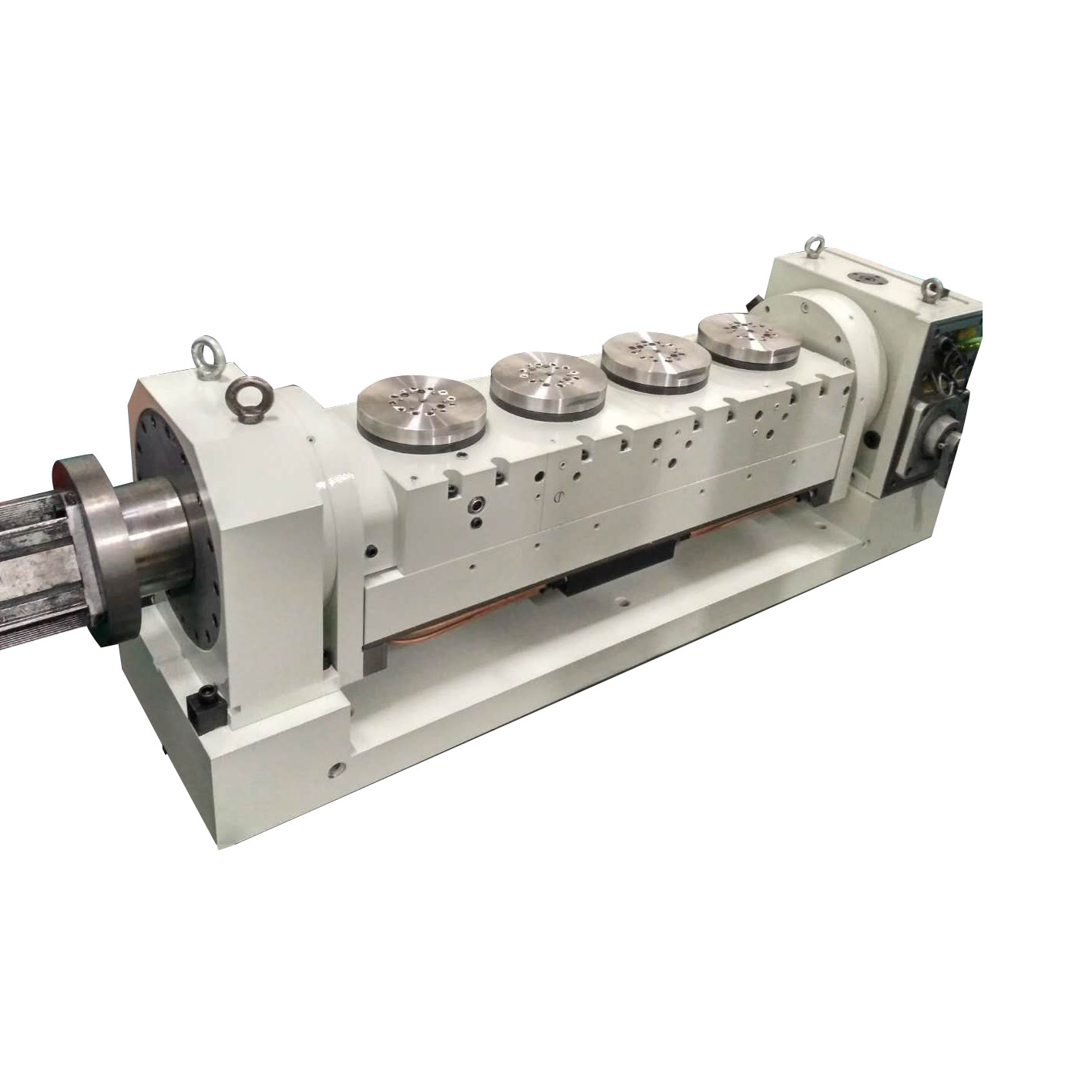

5th Axis NC Tilting Rotary Table

ROTARY TABLE
0086-18615009310
felixtools@fmore-ma.com
Feature:5th axis tilting rotary tables adapt high precision rotary table bearingsLarger diameter dual lead wormand high teeth height worm gear.
FEEDBACK

5th axis tilting rotary tables adapt high precision rotary table bearings,Larger diameter dual lead wormand high teeth height worm gear.

	Items		4MT-150
1	Table diameter,mm		φ150
2	No.of axis and distance between axis		4-185mm
3	Height of rotary table in Hor.,mm		380
4	Height of tilting axis,mm		290
5	Center bore of each rotary table		None/customerized
6	T-slot of each rotary table		None/customerized
7	Locating key,mm		18
8	Rotating ratio		1:72
9	Tilting ratio		1:180
10	Max.rotating speed,rpm		28
11	Servo motor for rotary		β12is /customerized
	Servo motor for tilting		β12is /customerized
12	Tilting range		-120°~120°
13	Rotary clamping force,Nm(hydr.3.5MPa)		300
14	Tilting clamping force,Nm(hydr.3.5MPa)		1500
15	Totary axis	Dividing accuracy	≤1’
		Repeatbility	≤10”
16	Tilting axis	Dividing accuracy	≤1’
		Repeatbility	≤10”
17	Max.load,kg	0~30°	25
		0~90°	20
