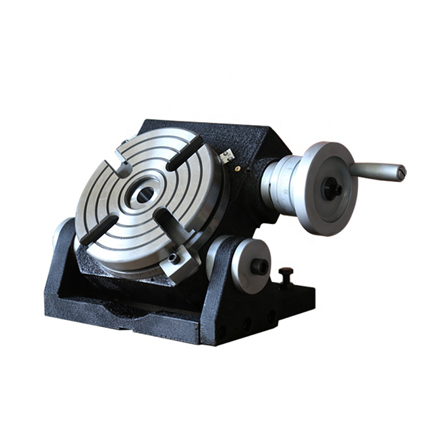

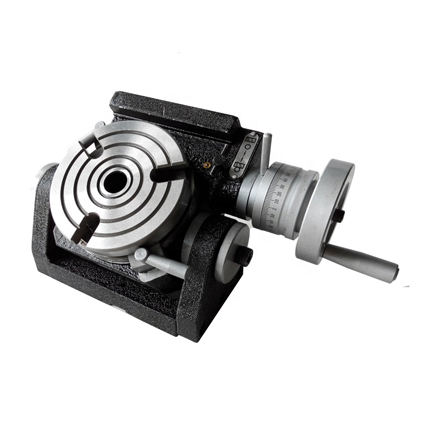

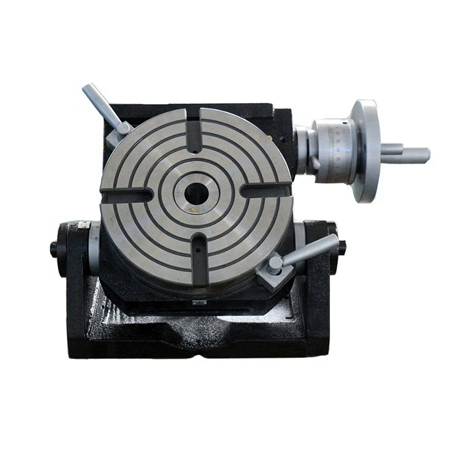

Economical Tilting Rotary Table

ROTARY TABLE
0086-18615009310
felixtools@fmore-ma.com
Feature:Diameter 3~8 in;Tilting angle 0~90°;Worm and worm gear as dividing system; 3-jaw scroll chuck and adjustable tailstock is optional.
FEEDBACK

TSK Economical series tilting rotary table are for indexing,circular cutting,angle setting,boring,spot facing operations and similar work in conjuntion with milling machines.

Items	TSK-3	TSK-4		TSK-5	TSK-6		TSK-8
Diameter mm	75	110		127	150		200
Morse taper of center hole	/	MT2					MT3
Width of T-slot	8	12			14
Width of locating key	12	14			18
Adjacent angle of T-slot	90°	120°			90°
Transmission radio of worm gear	1:36		1:72			1:90
Tilting angle	0°~90°
Readout of handwheel	1’	2’					1’
Min.value of vernier	20”						10”
Min.value of tilting vernier	2°
Indexing accuracy	80”	60”
N.W. kg	7	15		16	19		38
G.W. kg	7.5	17		18	21		41
Case dimensions mm	260x160x140	300x200x180		320x200x190	340x250x185		400x300x240
