DIVIDING HEAD

Universal Dividing Head

DIVIDING HEAD
0086-18615009310
felixtools@fmore-ma.com
Feature:Important attachments for milling machines.With the help of this dividing headthe workpiece held between centers or on a chuck can be rotated to any angles as desired.
FEEDBACK

Universal dividing head is one of the most important attachments for milling machines.With the help of this dividing head,the workpiece held between centers,or on a chuck can be rotated to any angles as desired and the periphery of a wokpiece can be divided into any divisions of equal parts.By means of all kindsof cutters,dividing head can also help milling machines to perform the milling operation for flute,spur gear,spiral flute,Archimedean cam,helical flute and etc.
Dividing head is equipped with a face plate that can be mounted onto its spindle.The workpiece can be mounted on the face plate,cutting can be carried out on 4-sides of a workpiece.

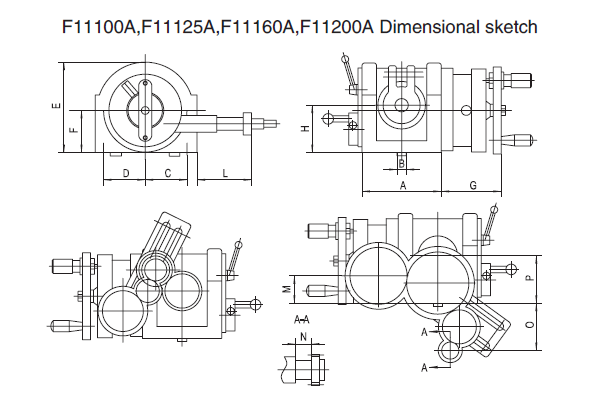

Items		FW80	F11100A	F11125A	F11160A	F11200A
Center height mm		80	100	125	160	200
Swivel angle of spindle from its horizontal position(upward)		≤90°	≤95°
Horizontal position(downward)		≤6°	≤5°
Rotating angle of spindle for one complete revolution of dividing handle		9°(540grad.,1’each)
Min. reading of vernier		10”
Worm gear ratio		1:40
Taper of spindle bore		MT3		MT4
Width of locating key mm		14	14	18	18	22
Dia.of short taper of spindle nose for mounting flange mm		Φ36.541	Φ41.275	Φ53.975
Hole numbers on index plate	1^st plate	24,25,28,30,34,37,38,39,41,42,43
	2^nd plate	46,47,49,51,53,54,57,58,59,62,66
Change gear	Module	1.5		2
	Teeth numbers	25,30,35,40,50,55,60,70,80,90,100
Individual indexing error of the spindle for one complete revolution of dividing handle		60”	±45”
Cumulate error at any 1/4 periphery of spindle		±1’
Max. bearing Kg		80	100	130	130	130
N.W. Kg		36	67	110	130	135
G.W. Kg		45	79	126	149	155
Case dimensions mm		542X403X220	616X465X265	635X530X310	710X535X342	758X593X383
