Semi-universal Dividing Head

DIVIDING HEAD
0086-18615009310
felixtools@fmore-ma.com
Feature:Important attachment for milling machineworkpiece can be carried out direct indexing and simple indexingor rotate to any angle as desired and the periphery of a workpiece can be divided into any divisions of equal parts and etc.
FEEDBACK

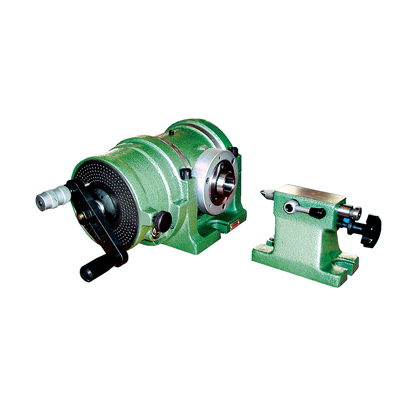

F12 series and FB80, semi-universal dividing head,is one of the most important attachment for milling machine.With the help of this dividing head,the workpiece can be carried out direct indexing and simple indexing,or rotate to any angle as desired andthe periphery of a workpiece can be divided into any divisions of equal parts and etc.

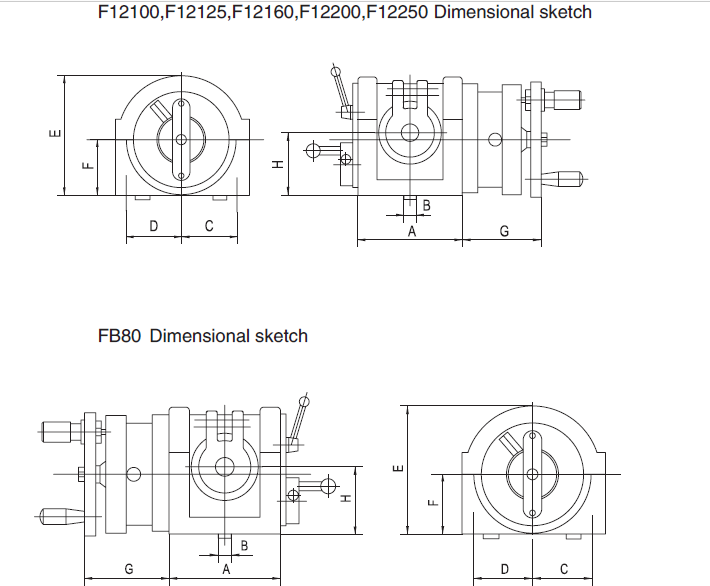

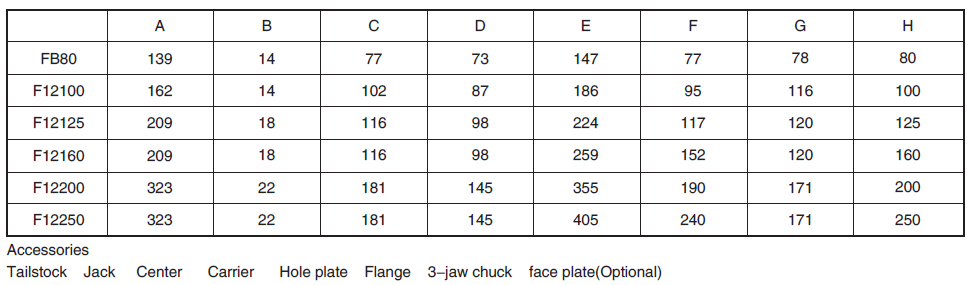

Items		FB80	F12100	F12125	F12160		F12200	F12250
Center height mm		80	100	125	160		200	250
Swivel angle of spindle from its horizontal position (upward)		≤90°	≤95°
Horizontal position(downward)		≤6°	≤5°
Rotating angle of spindle for one complete revolution of dividing handle		9°(540grad.,1’each)
Min. reading of vernier		10”
Worm gear ratio		1:40
Taper of spindle bore		MT3		MT4			MT5
Width of locating key mm		14		18			22
Dia.of short taper of spindle nose for mounting flange mm		Φ36.541	Φ41.275	Φ53.975			Φ82.563
Hole numbers on index plate	1^st plate	24,25,28,30,34,37,38,39,41,42,43
	2^nd plate	46,47,49,51,53,54,57,58,59,62,66
Individual indexing error of the spindle for one complete revolution of dividing handle		60”	±45”
Cumulate error at any 1/4 periphery of spindle		70”	±1’
Max. bearing Kg		80	100	130		130	200	200
N.W. Kg		26	57	83.5		100
G.W. Kg		32	69	96		114	325	380
Case dimensions mm		480X360X219	610X459X255	536X460X310		710X505X342	980X720X530	980X720X530
