ROTARY TABLE

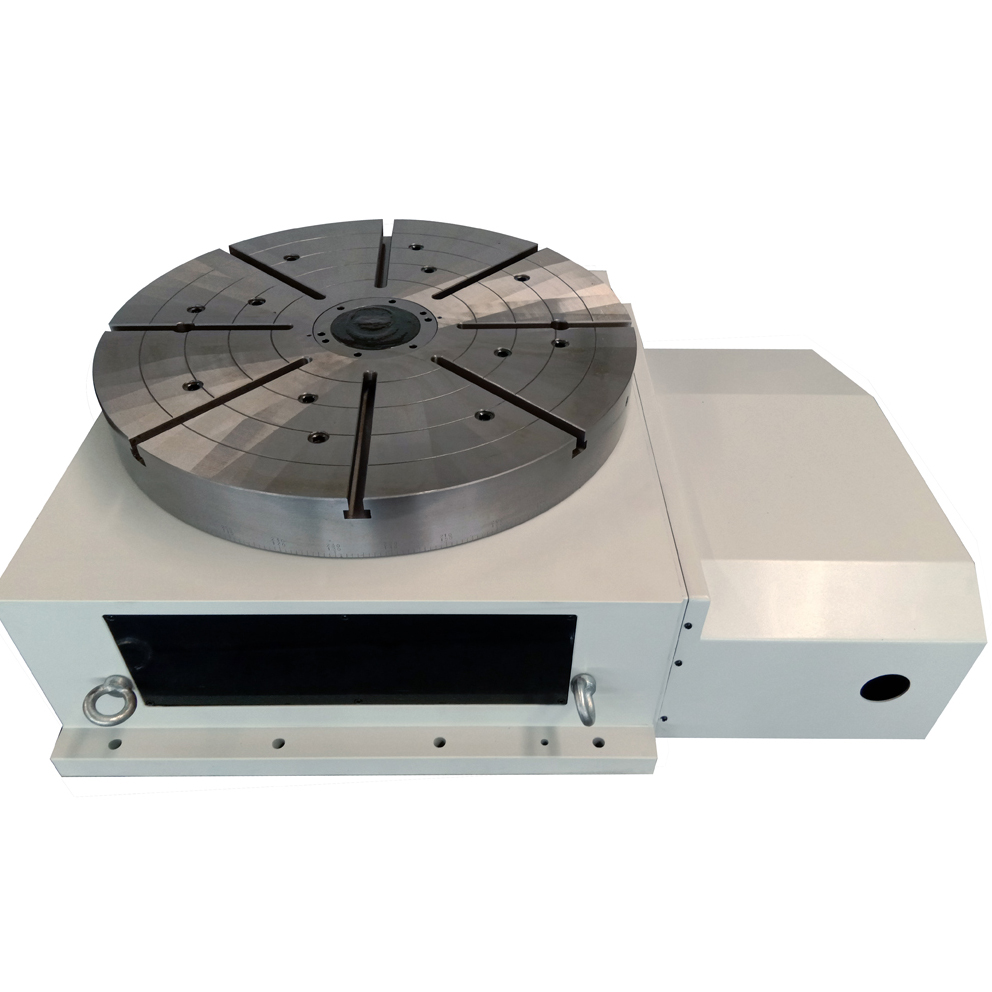

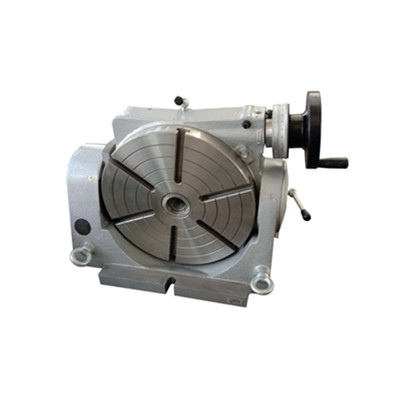

4th Axis NC Rotary Table

  • ROTARY TABLE
  • 0086-18615009310
  • felixtools@fmore-ma.com
  • Feature:Applied in horizontal and vertical position.Adapt high precision rotary table bearings.Larger diameter dual lead wormand high teeth height wormgear.Large through hole rotary table round tailstock and manual tailstock is optional.
  • FEEDBACK

Applied in horizontal and vertical position.
Adapt high precision rotary table bearings.
Larger diameter dual lead wormand high teeth height worm gear.
Large through hole rotary table is optional.

No. Items RN170 RN200 RN250 RN315
1 Table diameter,mm 170 200 250 315
2 Center height in Vert.,mm 155 170 190 225
3 Total thickness,mm 180 188 193 250
4 Center bore dia.,mm Φ40H7 Φ40H7 Φ40H7 Φ50H7
5 Locating key,mm 18 18 18 18
6 T-slot,mm 4-12 4-12 6-12 6-14
7 Worm gear ratio 1:72 1:72 1:72 1:72
8 Total reduction ratio 1:72 1:72 1:72 1:72/1:144
9 Max.speed,motor 2000 r/min 27.7 27.7 27.7 27.7
10 Graduation angle per pulse 0.001° 0.001° 0.001° 0.001°
11 Servo motor torque,Nm ≥4 ≥4 ≥6 ≥8
12 Dividing accuracy 20" 20" 20" 20"
13 Repeatability 4" 4" 4" 4"
14 Clamp torque,Kg.m
( Pneumatic 0.5MPa)
10 20 35 60
15 Vert.max.load,kg 50 75 100 150
16 Hor.max.load,kg 150 200 250 350
