Precision Tilting Rotary Table

ROTARY TABLE
0086-18615009310
felixtools@fmore-ma.com
Feature:Diameter 160~320mm;Tilting angle 0~90°; Worm and worm gear as dividing system; 3-jaw scroll chuck and adjustable tailstock is optional.
FEEDBACK

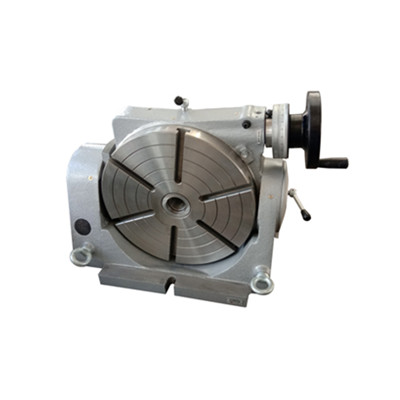

TSK series tilting rotary table are for indexing,circular cutting,angle setting,boring,spot facing operations and similar work in conjuntion with milling machines.This type rotary table is so designed as to permit machining opertations at a higher dimension than that of TS typer rotary tables.The table can be used in a vertical position to enable to carry out center work with the help of tailstocks.
A flange for connecting scroll chuck is special supplied and be packed independectly.For special order,dividing plate accessory allows the operator to accurately divide the 360° rotation of the clamping surface into divisions of 2 through 66,and all divisions of 2,3 and 5 from 67-132.
This table can be tilted to any position from 0° to 90° and locked.

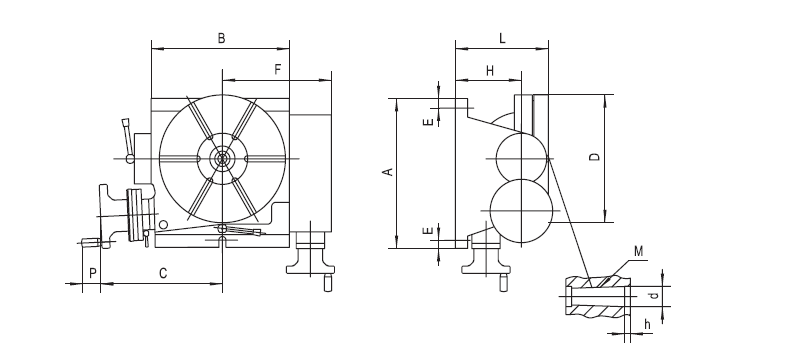

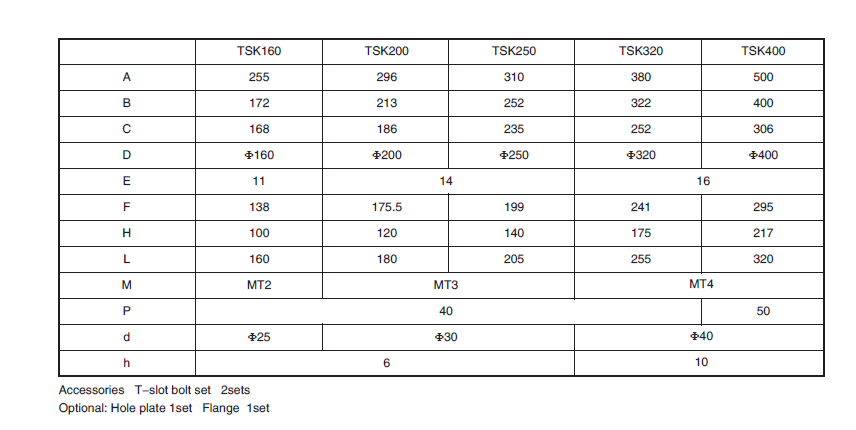

Items	TSK160		TSK200	TSK250	TSK320	TSK400
Diameter mm	160		200	250	320	400
Morse taper of center hole	MT2		MT3		MT4
Dia.of center hole	Φ25X6		Φ30X6		Φ40X10
Width of T-slot	10		12		14
Width of locating key	12		14		18
Adjacent angle of T-slot	90°			60°
Transmission radio of worm gear	1:90
Tilting angle	0°~90°
Readout of handwheel	1’
Min.value of vernier	10”
Min.value of tilting vernier	2’
Indexing accuracy	80”	60”
Max.bearing(Hor.) kg	100	150		200	250	300
Max.bearing(Vert.) kg	50	75		100	125	150
N.W. kg	36	57		80	135	280
G.W. kg	44	67		93	150	305
Case dimensions mm	425X380X300	492X423X306		550X430X330	630X490X395	830X600X460
