MACHINE VISE

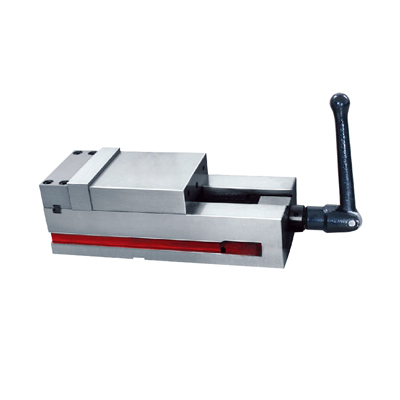

Precision Machine Vise

MACHINE VISE
0086-18615009310
felixtools@fmore-ma.com

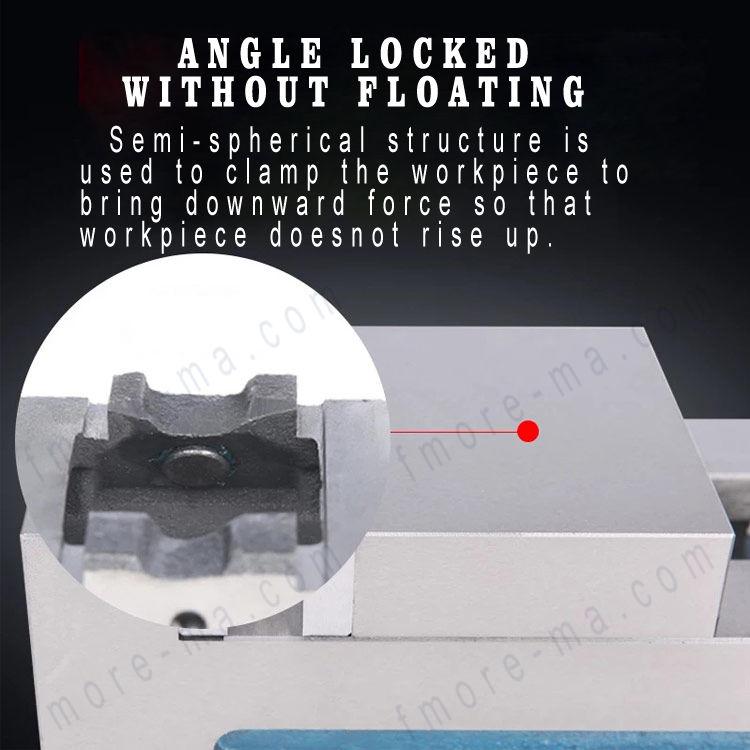

Feature:Made of nodular cast iron Suitable for CNC machine centermilling machine and grinding machine Accu-lock machine vises clamp workpiece without lifting.
FEEDBACK

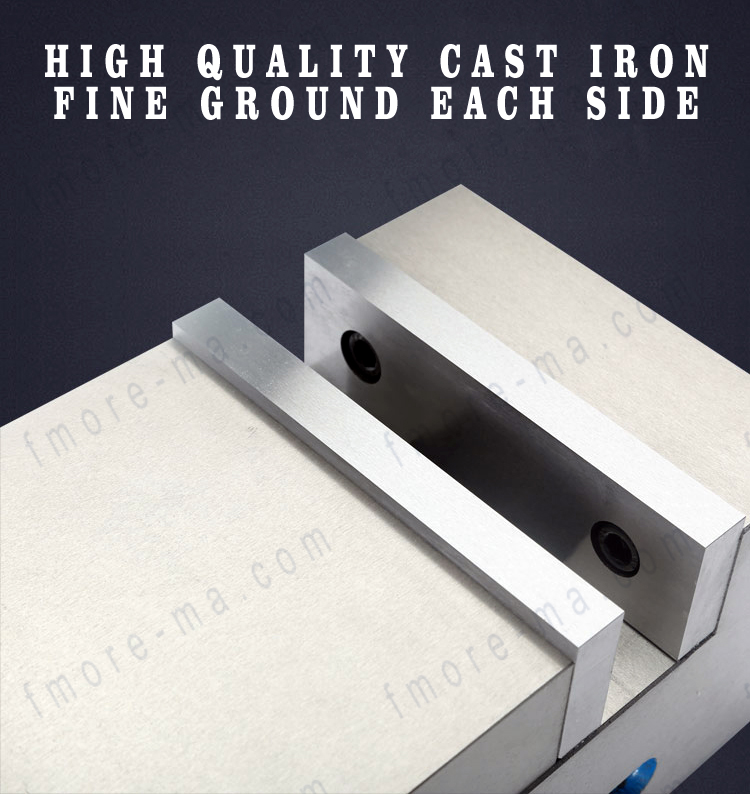

1.Made of nodular cast iron.
2.Parallelism0.025/100mm,squareness0.025mm,flatness0.02/100mm
3.Suitable for CNC machine center,milling machine,grinding machine.

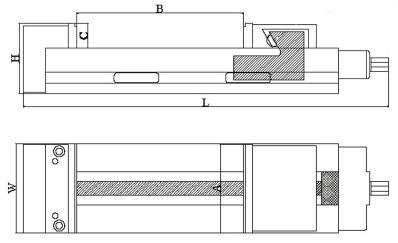

Order No.	A	B	C	L	W	H	GW/NW (Kg)
QM1680N	80	75	24	239	81	74	8/7
QM16100N	100	110	32	300	101	86	13/12
QM16125N	125	125	40	360	126	105	18/17
QM16160N	160	190	45	440	161	122	30/29
QM16200N	200	200	50	505	201	135	49/47
QM16250N	250	250	70	570	251	168	73/69
