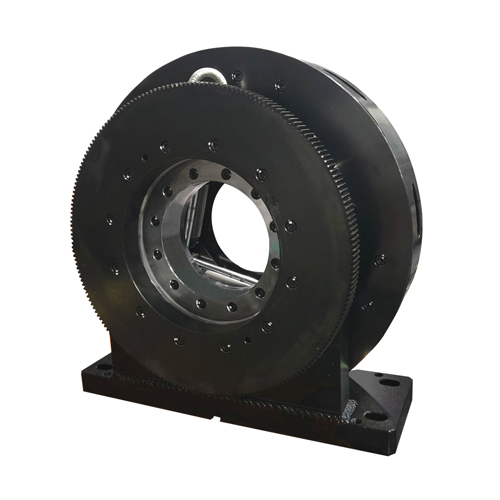

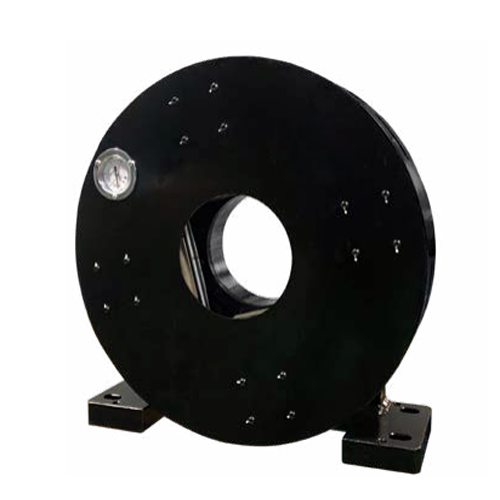

SIMPLE LASER CUTTING CHUCK

The product is specially designed for laser tube cutting equipment. The product itself can be used as an independent rotating spindle, and a chuck in it can firmly clamp workpiece and rotate simultaneously,
The quick clamping and looseing actions can be realized by side rotation and air intake, Disconnect the air source berfore operation.
The chuck can work in full stroke without additional adjustment of four claws. It can clamp all applicable pipe fittings and improve production efficiency.
Adopting a fully closed structure, the chuck has better stabilty and wear resistance. With cross roller beraing, it has longer service life, higer rotary accuracy and repeated positioning accuracy than tradtional laser chuck, and greater clamping force than similar products  in the market. In the case of low air, a smaller calmping force can be obtained, thereby satisfying the need of processing thin-walled pipe fittings.
The product is widely used in special laser pipe cutter and other pipe processing machine systems.
