CROSS SLIDING TABLE

Cross Sliding Table

CROSS SLIDING TABLE
0086-18615009310
felixtools@fmore-ma.com
Feature:CROSS SLIDING TABLE
FEEDBACK

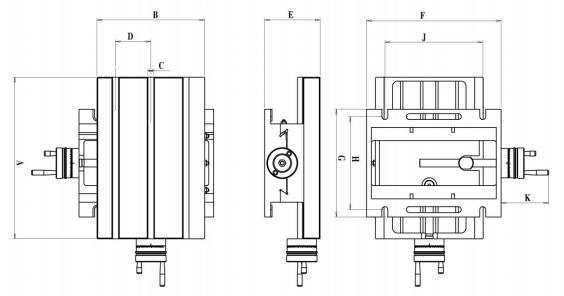

Model	A	B	C	D	E	F	G	H	K	X Travel	Y Travel	N.W/G.W,Kg
AKP201	185	100	10	35	102	170	130	115	96	80	50	10/11
AKP202	225	175	12	72	108	225	175	148	96	105	90	16/17
AKP203	330	220	12	72	115	275	220	190	96	190	100	23/26
AKP204	425	240	12	72	125	335	276	240	144	225	150	41/45
AKP205	600	240	12	72	125	335	276	240	144	400	150	51/56

Condition: New

Type:: Cross Table

Material:: cast iron, cast iron

Applicable Industries:: Machinery Repair Shops, Manufacturing Plant, Retail

Weight (KG):: 10

Video outgoing-inspection:: Provided

Machinery Test Report:: Provided

Marketing Type:: New Product 2022

Brand:: FMORE

Model:: AKP-204

Warranty:: 1 Year, 12months

Core Components:: PLC, Engine, Bearing, Gearbox, Motor, Pressure vessel, Gear, Pump

AKP-203 Table Size:: 330x220mm

AKP-203 Travel:: 190x100mm

AKP-204 Table Size:: 425x240mm

AKP-204 Travel:: 225x150mm

AKP-205 Table Size:: 600x240mm

AKP-205 Travel:: 400x150mm

Net weight:: 44/52/67 kg

Name:: Cross Slide Table
