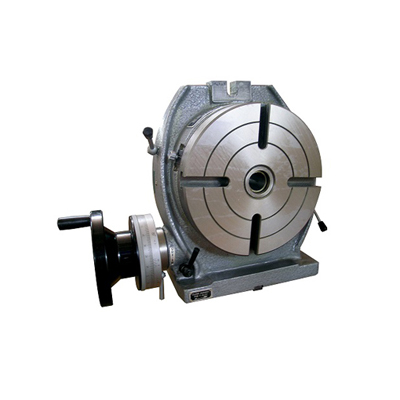

Precision Hor.&Vert.Rotary Table

  TSL series horizontal and vertical rotary table are for indexing,circular cutting,angle setting,boring,spot facing operations and similar work in conjuntion with milling machines.This type rotary table is so designed as to permit machining opertations at a higher demension than that of TS typer rotary tables.The table can be used in a vertical position to enable to carry out center work with the help of tailstocks.
  A flange for connecting scroll chuck is special supplied and be packed independectly.For special order,dividing plate accessory allows the operator to accurately divide the 360° rotation of the clamping surface into divisions of 2 through 66,and all divisions of 2,3 and 5 from 67-132.
