NC TURRET

VDI 4 Position NC Turret

NC TURRET
0086-18615009310
felixtools@fmore-ma.com
Feature:Suitable for vertical lathe and large flat-bed lathe;Four working position;Motor build-in;Presicion face gear coupling as indexing mechanism;High accuracy Reliability and Easy maintenance.
FEEDBACK

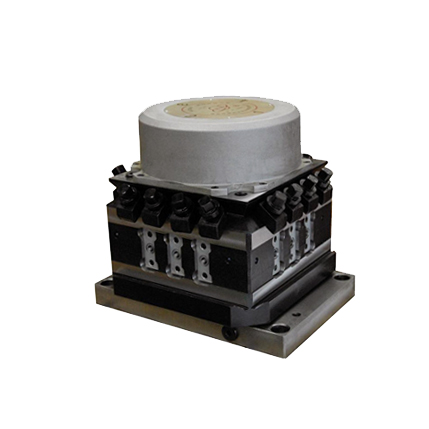

AK27 NC turret is an important accessory for NC lathe and especially applicable for large NC horizontal lathe and NC vertical lathe.It is designed to hold several tools and automatically index.Thus automation and high efficiency of procedures can be realized.
It utilizes a face gear coupling as indexing mechanism.Indexing sequence is mainly controlled by a positioning face gear and transducers.So it features high accuracy,reliability,wide application and compact design.

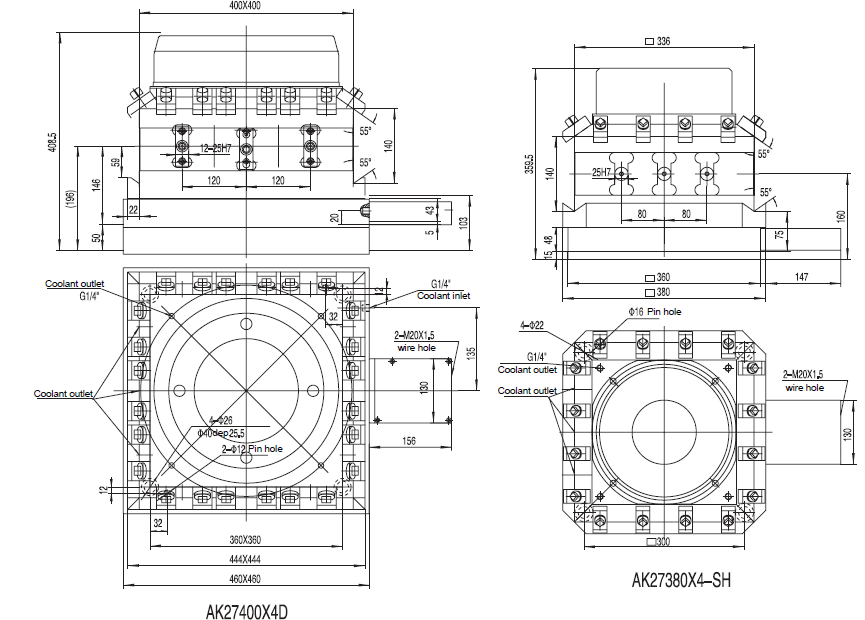

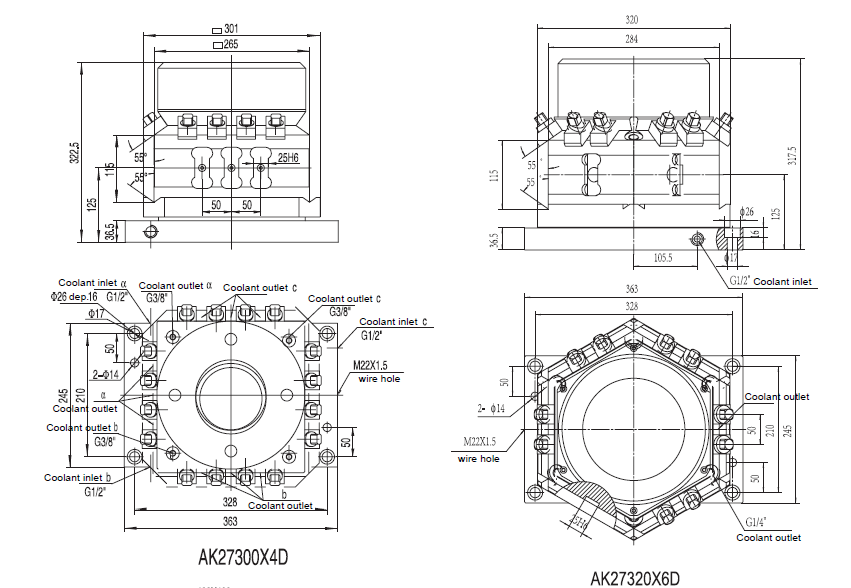

Items	AK27300X4D	AK27380X4SH	AK27400X4D
Turret square mm	300	380	400
Height of datum plan mm	125	145	196
Time of changing tool per position s	4	6.5	8.5
Max.clamping force KN	27.5	60	100
Torque of motor Nm	5	6.4	9.4
Net weight kg	122		400
Gross weight kg	132		430
Packing dimension cm	50x39x45	48x48x46	60x73x54
Repeatability mm	≤0.005
Torque in vertical Nm	4000	5500	5500
Max elastic deformation in vertical mm	≤0.06
Residual deformation in vertical mm	≤0.015
Torque in horizontal Nm	2000	3000	3000
Max elastic deformation in horizontal mm	≤0.06
Residual deformation in horizontal mm	≤0.015
