Feature:Suitable for large flat-bed lathe;Four working position;Motor build-in;Presicion face gear coupling as indexing mechanism;High accuracy ,Reliability and Easy maintenance.
FEEDBACK

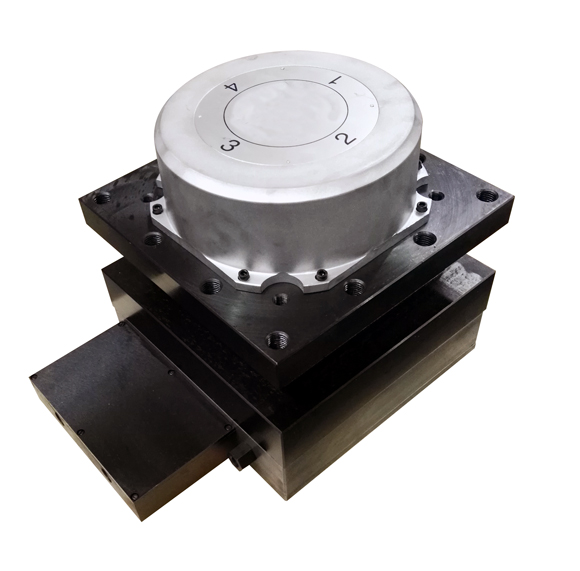

AK23 NC turret is an important accessory for NC lathe and especially applicable for large NC horizontal lathe and NC vertical lathe.It is designed to hold several tools and automatically index.Thus automation and high efficiency of procedures can be realized.
It utilizes a face gear coupling as indexing mechanism.Indexing sequence is mainly controlled by a positioning face gear and transducers.So it features high accuracy,reliability,wide application and compact design.

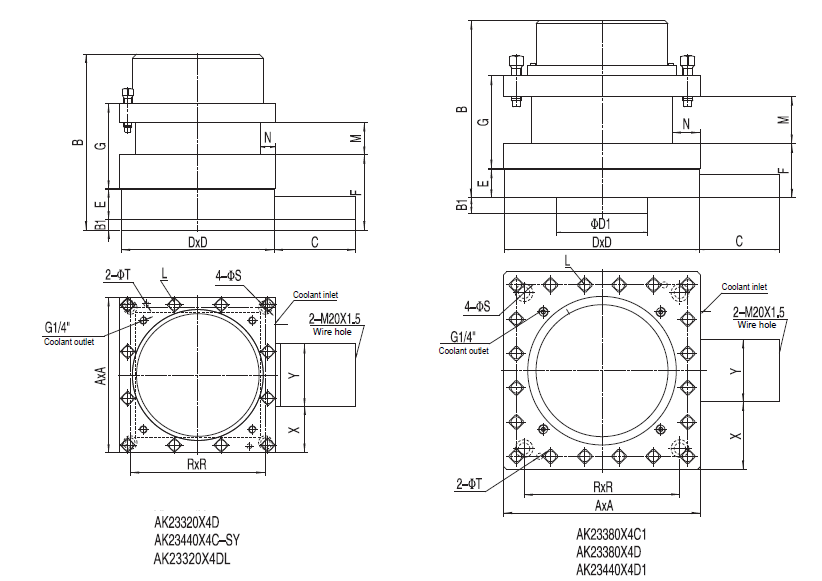

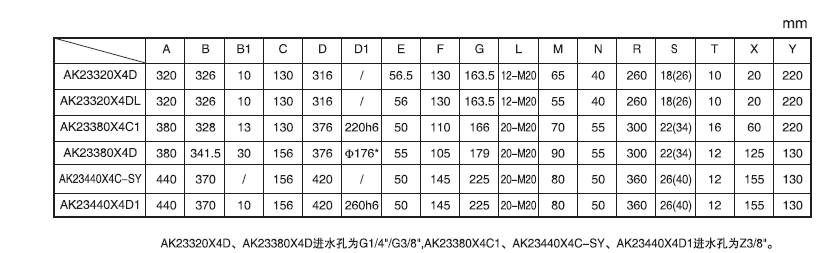

Items	AK23320X4D	AK23320X4DL	AK23380X4C1	AK23380X4D	AK23440X4C-SY	AK23440X4D1
Turret square mm	320	320	380	380	440	440
Height of datum plane mm	130	130	110	105	145	145
Time of changing tool per position s	4	4	4	6	8.5	8.5
Motor torque Nm	5	5	6.4	6.4	9.4	9.4
Max clamping force Nm	27500	27500	34000	60000	100000	100000
Torque in Vert. Nm	4000	4000	5500	5500	6300	6300
Max elastic deformation in Vert. mm	≤0.06
Residual deformation in Vert. mm	≤0.015
Torque in Hor. Nm	2000		3000		3200
Max elastic deformation in Hor. mm	≤0.06
Residual deformation in Hor. mm	≤0.015
Repeatability	0.005
N.W. kg	154	160	205	203	254	255
G.W. kg	168	170	230	228	281	285
Packing dimension mm	460x420x470	460x420x470	544x544x445	544x544x445	604x604x521	604x604x521
