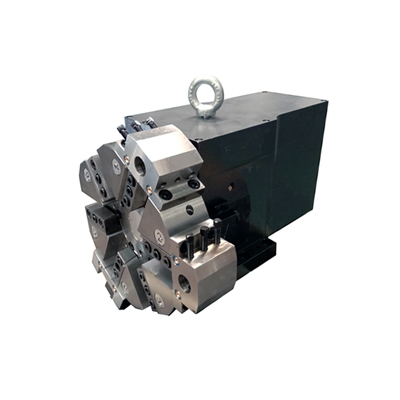

AK30 NC turret is an important accessory for NC lathe and especially for all-pervading NC lathe.It is designed to hold several tools and automatically index.Automation and high efficiency of operational prcedures can be realized.
It utilizes a face gear coupling as indexing mechanism.Indexing sequences is mainly controlled by a positioning face gear and a mechanical encoder.So it features high accuracy,reliability and compant design.

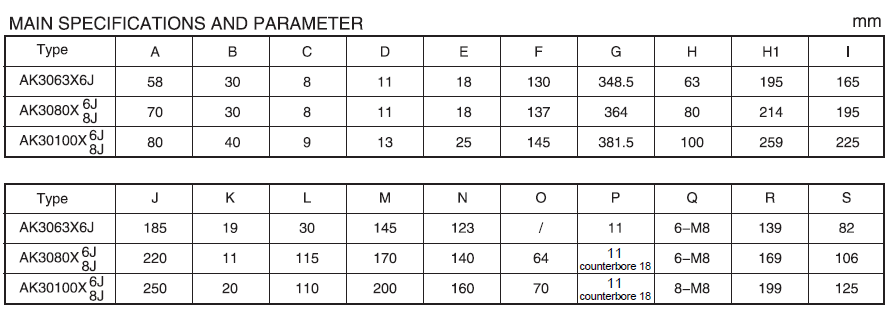

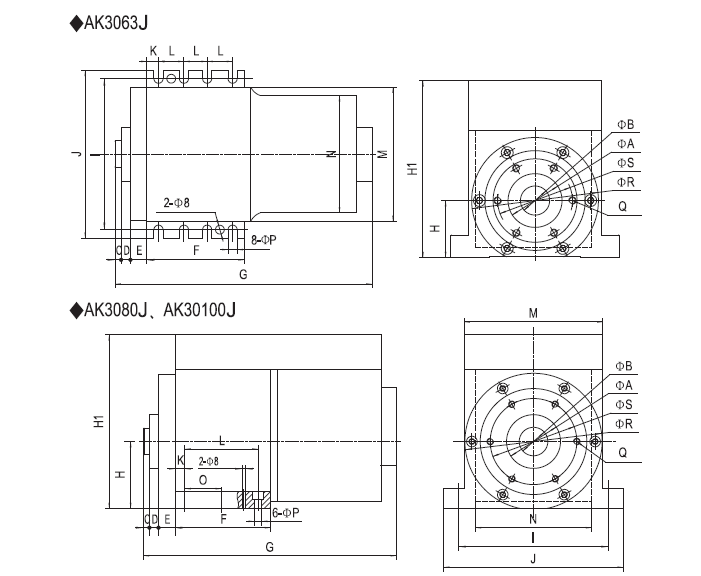

Items | Center height mm | Time for change tool s | Max clamping force N | Motor parameter | N.W. kg | G.W. kg | Package mm |
AK3063X6J | 63 | 3 | 20000 | 120W 1400r/min | 50 | 59 | 430x354x390 |
AK3080X6J | 80 | 3 | 25000 | 120W 1400r/min | 65 | 78 | 500x450x450 |
AK3080X8J | 73 | 86 | |||||
AK30100X6J | 100 | 2.85 | 25000 | Torque motor 3Nm | 113 | 135 | 580x560x560 |
AK30100X8J | 115 | 137 |
No. | Items | Accuracy(mm) |
1 | Parallelism of packing knife face to turret bottom | 0.100 |
2 | Repeatability | 0.005 |
3 | Max.elastic deformation with F in vertical | 0.050 |
4 | Max.residual deformation with F in vertical | 0.015 |
5 | Max.elastic deformation with F1 in horizontal | 0.05 |
6 | Max.residual deformation with F1 in horizontal | 0.015 |
