MACHINE VISE

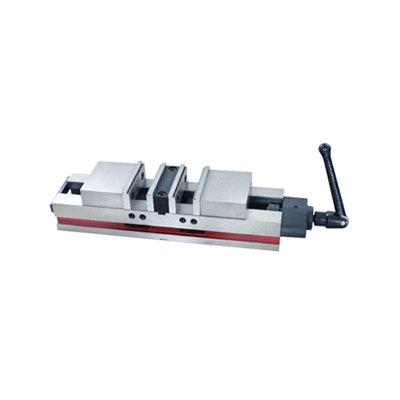

Two-station Machine Vise

  • MACHINE VISE
  • 0086-18615009310
  • felixtools@fmore-ma.com
  • Feature:Suitable for CNC milling machine CNC machine center; Made of nodular cast iron; Two clamping station allows different sizes workpieces;Accu-lock machine vises clamp workpiece without lifting.
  • FEEDBACK

1.Suitable for CNC milling machine ,CNC machine center.
2.Made of nodular cast iron.Parallism 0.015/100mm,squareness 0.02mm
3.Two clamping station allows different size workpieces.Q93100 two workpiece difference 30mm,Q93160 two workpiece difference 45mm.

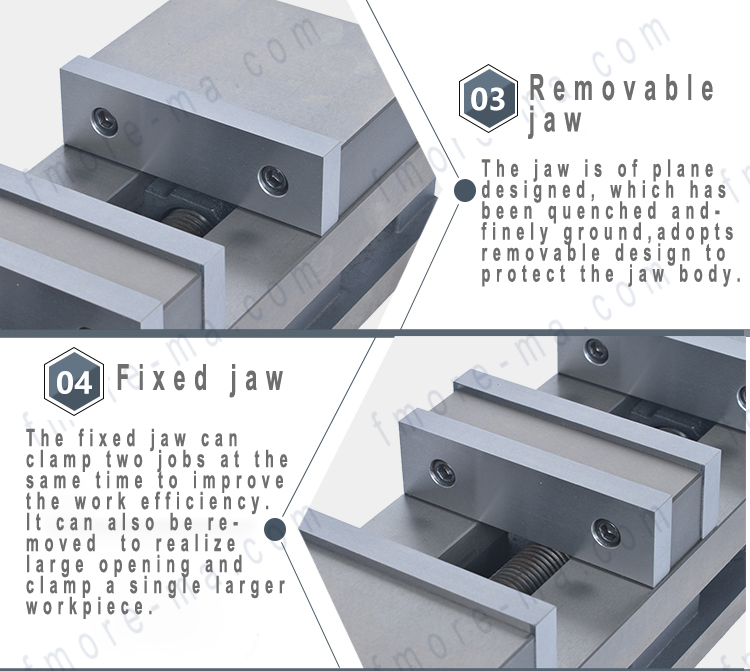

4.It can be used as self centering machine vise after removing fixed jaw.

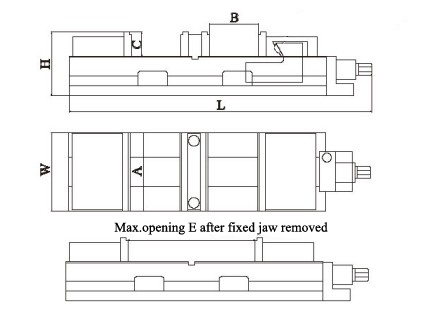

Order No. A B C E L W H GW/NW
(Kg)
Q93100 100 76 37 207 460 101 95 18/17
Q93160 160 100 50 256 612 160 130 46/45
